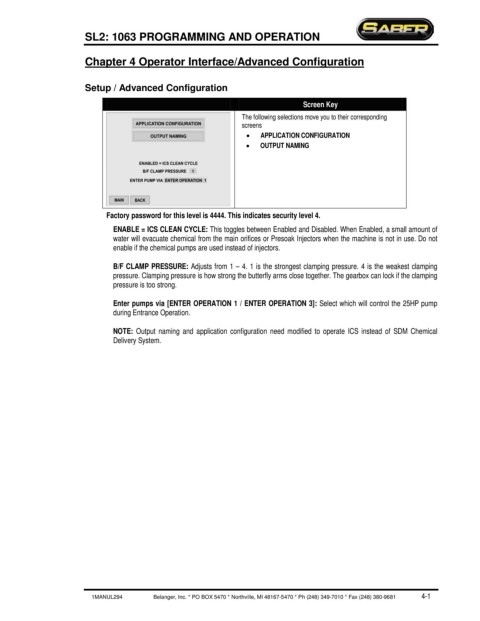

Page 39 - Saber® SL2 - E-1063 Programming and Operation Manual

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 4 Operator Interface/Advanced Configuration

Setup / Advanced Configuration

Screen Key
The following selections move you to their corresponding
screens
• APPLICATION CONFIGURATION
• OUTPUT NAMING

Factory password for this level is 4444. This indicates security level 4.

ENABLE = ICS CLEAN CYCLE: This toggles between Enabled and Disabled. When Enabled, a small amount of
water will evacuate chemical from the main orifices or Presoak Injectors when the machine is not in use. Do not
enable if the chemical pumps are used instead of injectors.

B/F CLAMP PRESSURE: Adjusts from 1 – 4. 1 is the strongest clamping pressure. 4 is the weakest clamping
pressure. Clamping pressure is how strong the butterfly arms close together. The gearbox can lock if the clamping
pressure is too strong.

Enter pumps via [ENTER OPERATION 1 / ENTER OPERATION 3]: Select which will control the 25HP pump
during Entrance Operation.

NOTE: Output naming and application configuration need modified to operate ICS instead of SDM Chemical
Delivery System.
