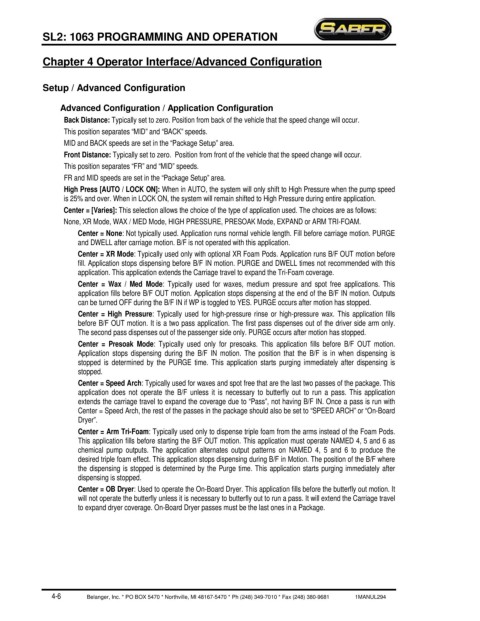

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 4 Operator Interface/Advanced Configuration

Setup / Advanced Configuration

Advanced Configuration / Application Configuration
Back Distance: Typically set to zero. Position from back of the vehicle that the speed change will occur.
This position separates “MID” and “BACK” speeds.
MID and BACK speeds are set in the “Package Setup” area.
Front Distance: Typically set to zero. Position from front of the vehicle that the speed change will occur.
This position separates “FR” and “MID” speeds.
FR and MID speeds are set in the “Package Setup” area.
High Press [AUTO / LOCK ON]: When in AUTO, the system will only shift to High Pressure when the pump speed
is 25% and over. When in LOCK ON, the system will remain shifted to High Pressure during entire application.
Center = [Varies]: This selection allows the choice of the type of application used. The choices are as follows:
None, XR Mode, WAX / MED Mode, HIGH PRESSURE, PRESOAK Mode, EXPAND or ARM TRI-FOAM.
Center = None: Not typically used. Application runs normal vehicle length. Fill before carriage motion. PURGE
and DWELL after carriage motion. B/F is not operated with this application.
Center = XR Mode: Typically used only with optional XR Foam Pods. Application runs B/F OUT motion before
fill. Application stops dispensing before B/F IN motion. PURGE and DWELL times not recommended with this
application. This application extends the Carriage travel to expand the Tri-Foam coverage.
Center = Wax / Med Mode: Typically used for waxes, medium pressure and spot free applications. This
application fills before B/F OUT motion. Application stops dispensing at the end of the B/F IN motion. Outputs
can be turned OFF during the B/F IN if WP is toggled to YES. PURGE occurs after motion has stopped.
Center = High Pressure: Typically used for high-pressure rinse or high-pressure wax. This application fills
before B/F OUT motion. It is a two pass application. The first pass dispenses out of the driver side arm only.
The second pass dispenses out of the passenger side only. PURGE occurs after motion has stopped.
Center = Presoak Mode: Typically used only for presoaks. This application fills before B/F OUT motion.
Application stops dispensing during the B/F IN motion. The position that the B/F is in when dispensing is
stopped is determined by the PURGE time. This application starts purging immediately after dispensing is
stopped.
Center = Speed Arch: Typically used for waxes and spot free that are the last two passes of the package. This
application does not operate the B/F unless it is necessary to butterfly out to run a pass. This application
extends the carriage travel to expand the coverage due to “Pass”, not having B/F IN. Once a pass is run with
Center = Speed Arch, the rest of the passes in the package should also be set to “SPEED ARCH” or “On-Board
Dryer”.
Center = Arm Tri-Foam: Typically used only to dispense triple foam from the arms instead of the Foam Pods.
This application fills before starting the B/F OUT motion. This application must operate NAMED 4, 5 and 6 as
chemical pump outputs. The application alternates output patterns on NAMED 4, 5 and 6 to produce the
desired triple foam effect. This application stops dispensing during B/F in Motion. The position of the B/F where
the dispensing is stopped is determined by the Purge time. This application starts purging immediately after
dispensing is stopped.
Center = OB Dryer: Used to operate the On-Board Dryer. This application fills before the butterfly out motion. It
will not operate the butterfly unless it is necessary to butterfly out to run a pass. It will extend the Carriage travel
to expand dryer coverage. On-Board Dryer passes must be the last ones in a Package.
