INSTALLATION & STARTUP

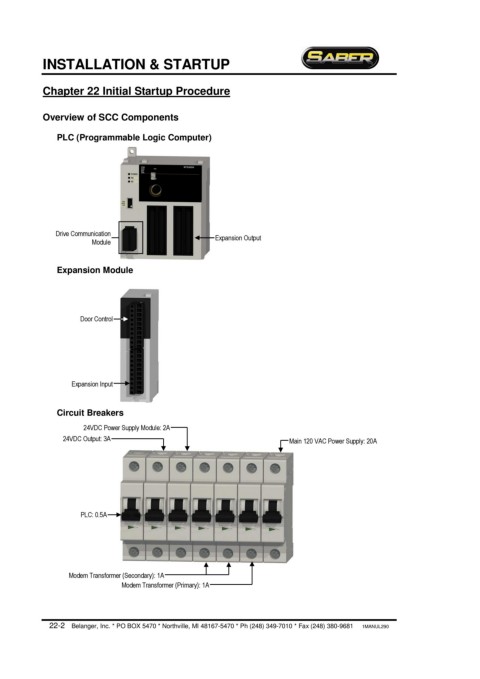

Chapter 22 Initial Startup Procedure
Overview of SCC Components
PLC (Programmable Logic Computer)
Drive Communication Expansion Output
Module
Expansion Module
Door Control
Expansion Input
Circuit Breakers
24VDC Power Supply Module: 2A
24VDC Output: 3A Main 120 VAC Power Supply: 20A
PLC: 0.5A
Modem Transformer (Secondary): 1A
Modem Transformer (Primary): 1A
