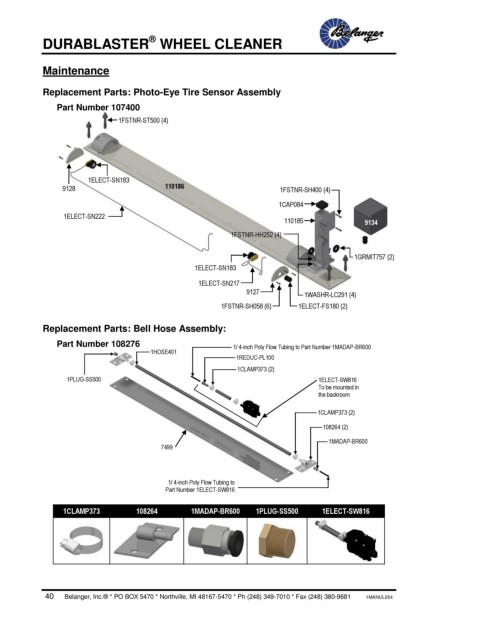

            DURABLASTER  WHEEL CLEANER

            Maintenance


            Replacement Parts: Photo-Eye Tire Sensor Assembly
               Part Number 107400
                               1FSTNR-ST500 (4)








                       1ELECT-SN183
                 9128                      110186                       1FSTNR-SH400 (4)

                                                                        1CAP084
                 1ELECT-SN222
                                                                         110185               9134
                                                            1FSTNR-HH252 (4)

                                                                                           1GRMIT757 (2)
                                                   1ELECT-SN183
                                                    1ELECT-SN217
                                                                9127           1WASHR-LC291 (4)

                                                         1FSTNR-SH058 (6)    1ELECT-FS180 (2)


            Replacement Parts: Bell Hose Assembly:
               Part Number 108276                           1/ 4-inch Poly Flow Tubing to Part Number 1MADAP-BR600
                                       1HOSE401
                                                             1REDUC-PL100
                                                             1CLAMP373 (2)
                  1PLUG-SS500                                                     1ELECT-SW816
                                                                                  To be mounted in
                                                                                  the backroom

                                                                                  1CLAMP373 (2)

                                                                                   108264 (2)
                                                                                     1MADAP-BR600
                                          7499



                                            1/ 4-inch Poly Flow Tubing to
                                           Part Number 1ELECT-SW816

                 1CLAMP373          108264        1MADAP-BR600    1PLUG-SS500      1ELECT-SW816
