DURABLASTER WHEEL CLEANER
Maintenance

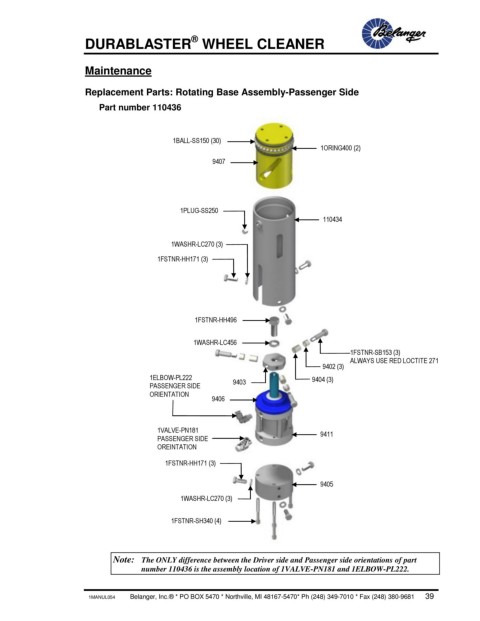

Replacement Parts: Rotating Base Assembly-Passenger Side
Part number 110436
1BALL-SS150 (30)
1ORING400 (2)
9407
1PLUG-SS250
110434
1WASHR-LC270 (3)
1FSTNR-HH171 (3)
1FSTNR-HH496
1WASHR-LC456
1FSTNR-SB153 (3)
ALWAYS USE RED LOCTITE 271
9402 (3)
1ELBOW-PL222 9404 (3)
PASSENGER SIDE 9403
ORIENTATION
9406
1VALVE-PN181 9411
PASSENGER SIDE
OREINTATION
1FSTNR-HH171 (3)
9405
1WASHR-LC270 (3)
1FSTNR-SH340 (4)
Note: The ONLY difference between the Driver side and Passenger side orientations of part
number 110436 is the assembly location of 1VALVE-PN181 and 1ELBOW-PL222.
