DURABLASTER WHEEL CLEANER

Maintenance

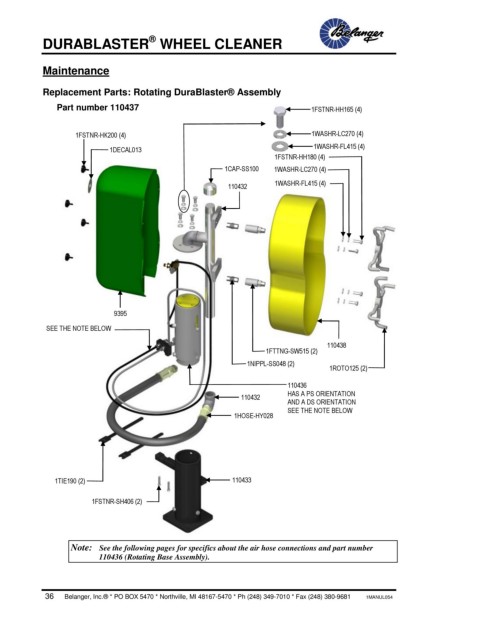

Replacement Parts: Rotating DuraBlaster® Assembly
Part number 110437 1FSTNR-HH165 (4)

1FSTNR-HK200 (4) 1WASHR-LC270 (4)
1WASHR-FL415 (4)
1DECAL013
1FSTNR-HH180 (4)
1CAP-SS100 1WASHR-LC270 (4)

110432 1WASHR-FL415 (4)

9395

SEE THE NOTE BELOW
110438
1FTTNG-SW515 (2)

1NIPPL-SS048 (2) 1ROTO125 (2)

110436
110432 HAS A PS ORIENTATION
AND A DS ORIENTATION
SEE THE NOTE BELOW
1HOSE-HY028

1TIE190 (2) 110433

1FSTNR-SH406 (2)

Note: See the following pages for specifics about the air hose connections and part number
110436 (Rotating Base Assembly).
