Page 37 - DuraBlaster® Wheel Cleaner
P. 37

®
                       DURABLASTER  WHEEL CLEANER

                       Maintenance


                       Disassembly Procedure

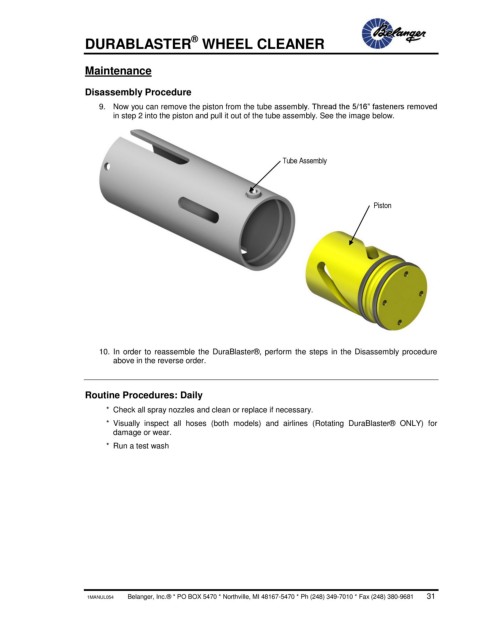

                          9.  Now you can remove the piston from the tube assembly. Thread the 5/16” fasteners removed
                              in step 2 into the piston and pull it out of the tube assembly. See the image below.





                                                                         Tube Assembly





                                                                                                Piston





















                          10. In  order  to  reassemble  the  DuraBlaster®, perform the steps in the Disassembly procedure
                              above in the reverse order.


                       Routine Procedures: Daily

                            *  Check all spray nozzles and clean or replace if necessary.
                            *  Visually  inspect  all  hoses  (both  models)  and  airlines  (Rotating  DuraBlaster®  ONLY)  for
                              damage or wear.
                            *  Run a test wash






















                       1MANUL054         Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681      31
