DURABLASTER WHEEL CLEANER

Maintenance

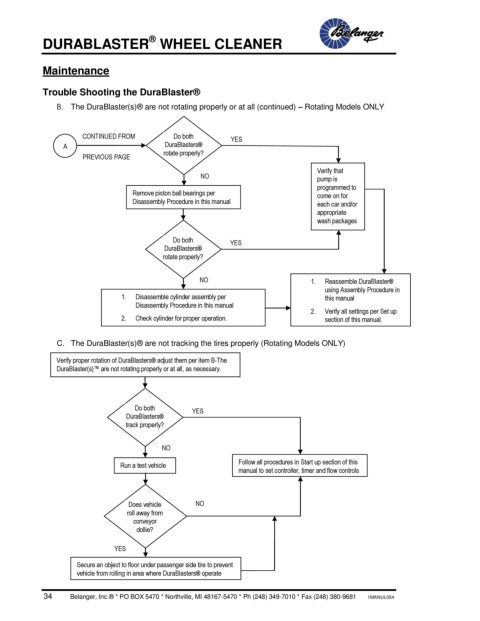

Trouble Shooting the DuraBlaster®
B. The DuraBlaster(s)® are not rotating properly or at all (continued) – Rotating Models ONLY

CONTINUED FROM Do both YES
DuraBlasters®
A rotate properly?
PREVIOUS PAGE

Verify that
NO pump is

Remove piston ball bearings per programmed to
come on for
Disassembly Procedure in this manual each car and/or
appropriate
wash packages

Do both YES
DuraBlasters®
rotate properly?

NO 1. Reassemble DuraBlaster®
using Assembly Procedure in
1. Disassemble cylinder assembly per this manual
Disassembly Procedure in this manual
2. Check cylinder for proper operation. 2. Verify all settings per Set up
section of this manual.

C. The DuraBlaster(s)® are not tracking the tires properly (Rotating Models ONLY)
Verify proper rotation of DuraBlasters® adjust them per item B-The
DuraBlaster(s)™ are not rotating properly or at all, as necessary.

Do both
DuraBlasters® YES
track properly?

NO

Run a test vehicle Follow all procedures in Start up section of this
manual to set controller, timer and flow controls

Does vehicle NO
roll away from
conveyor
dollie?

YES

Secure an object to floor under passenger side tire to prevent
vehicle from rolling in area where DuraBlasters® operate
