DURABLASTER WHEEL CLEANER

Maintenance

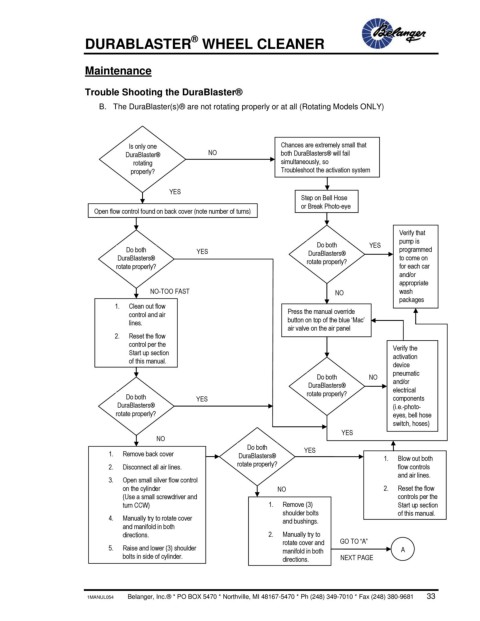

Trouble Shooting the DuraBlaster®
B. The DuraBlaster(s)® are not rotating properly or at all (Rotating Models ONLY)

Is only one Chances are extremely small that
DuraBlaster® NO both DuraBlasters® will fail
rotating simultaneously, so
properly? Troubleshoot the activation system

YES
Step on Bell Hose
or Break Photo-eye
Open flow control found on back cover (note number of turns)

Verify that
pump is
Do both YES
Do both YES DuraBlasters® programmed
DuraBlasters® rotate properly? to come on
rotate properly? for each car
and/or
appropriate

NO-TOO FAST NO wash
packages
1. Clean out flow
control and air Press the manual override
lines. button on top of the blue ‘Mac’
air valve on the air panel
2. Reset the flow
control per the
Start up section Verify the
activation
of this manual. device
pneumatic
Do both NO
DuraBlasters® and/or
electrical
Do both YES rotate properly? components
DuraBlasters® (i.e.-photo-
rotate properly? eyes, bell hose
switch, hoses)
YES
NO
Do both YES
1. Remove back cover DuraBlasters® 1. Blow out both
2. Disconnect all air lines. rotate properly? flow controls
and air lines.
3. Open small silver flow control
on the cylinder NO 2. Reset the flow
(Use a small screwdriver and controls per the
turn CCW) 1. Remove (3) Start up section
shoulder bolts of this manual.
4. Manually try to rotate cover
and manifold in both and bushings.
directions. 2. Manually try to GO TO “A”
rotate cover and
5. Raise and lower (3) shoulder manifold in both A
bolts in side of cylinder. directions. NEXT PAGE

1MANUL054 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 33
