DURABLASTER WHEEL CLEANER

Maintenance

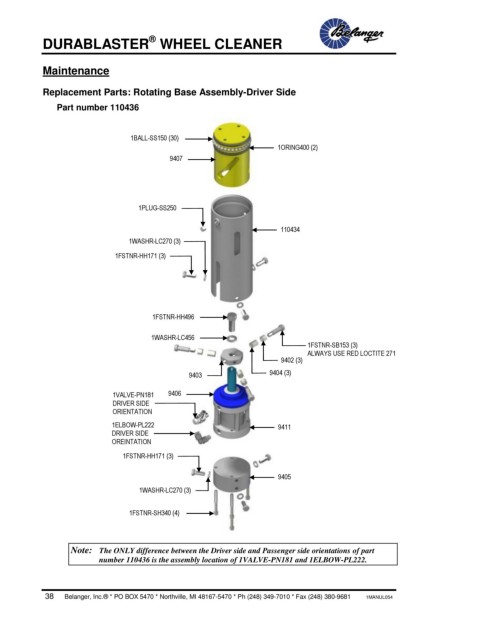

Replacement Parts: Rotating Base Assembly-Driver Side
Part number 110436

1BALL-SS150 (30)
1ORING400 (2)
9407

1PLUG-SS250

110434
1WASHR-LC270 (3)
1FSTNR-HH171 (3)

1FSTNR-HH496

1WASHR-LC456
1FSTNR-SB153 (3)
ALWAYS USE RED LOCTITE 271
9402 (3)
9403 9404 (3)

1VALVE-PN181 9406
DRIVER SIDE
ORIENTATION
1ELBOW-PL222 9411
DRIVER SIDE
OREINTATION
1FSTNR-HH171 (3)

9405

1WASHR-LC270 (3)

1FSTNR-SH340 (4)

Note: The ONLY difference between the Driver side and Passenger side orientations of part
number 110436 is the assembly location of 1VALVE-PN181 and 1ELBOW-PL222.
