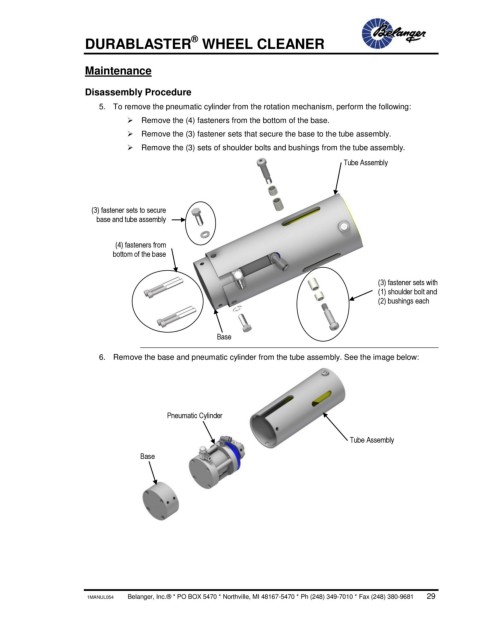

DURABLASTER WHEEL CLEANER

Maintenance

Disassembly Procedure
5. To remove the pneumatic cylinder from the rotation mechanism, perform the following:
 Remove the (4) fasteners from the bottom of the base.

 Remove the (3) fastener sets that secure the base to the tube assembly.
 Remove the (3) sets of shoulder bolts and bushings from the tube assembly.
Tube Assembly

(3) fastener sets to secure
base and tube assembly

(4) fasteners from
bottom of the base

(3) fastener sets with
(1) shoulder bolt and
(2) bushings each

Base

6. Remove the base and pneumatic cylinder from the tube assembly. See the image below:

Pneumatic Cylinder

Tube Assembly

Base
