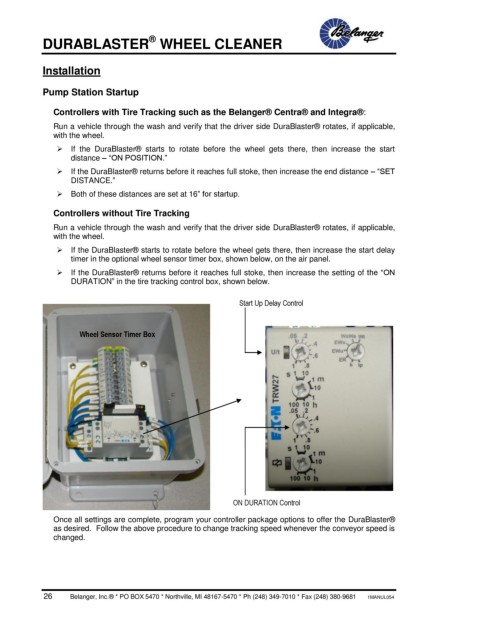

            DURABLASTER  WHEEL CLEANER
            Installation
            Pump Station Startup
               Controllers with Tire Tracking such as the Belanger® Centra® and Integra®:
               Run a vehicle through the wash and verify that the driver side DuraBlaster® rotates, if applicable,
               with the wheel.
                 If  the  DuraBlaster®  starts  to  rotate  before  the  wheel  gets  there,  then  increase  the  start
                   distance – “ON POSITION.”
                 If the DuraBlaster® returns before it reaches full stoke, then increase the end distance – “SET
                   DISTANCE.”
                 Both of these distances are set at 16” for startup.
               Controllers without Tire Tracking
               Run a vehicle through the wash and verify that the driver side DuraBlaster® rotates, if applicable,
               with the wheel.
                 If the DuraBlaster® starts to rotate before the wheel gets there, then increase the start delay
                   timer in the optional wheel sensor timer box, shown below, on the air panel.
                 If the DuraBlaster® returns before it reaches full stoke, then increase the setting of the “ON
                   DURATION” in the tire tracking control box, shown below.
                                                              Start Up Delay Control
                     Wheel Sensor Timer Box
                                                            ON DURATION Control
               Once all settings are complete, program your controller package options to offer the DuraBlaster®
               as desired.  Follow the above procedure to change tracking speed whenever the conveyor speed is
               changed.
