DURABLASTER WHEEL CLEANER

Installation

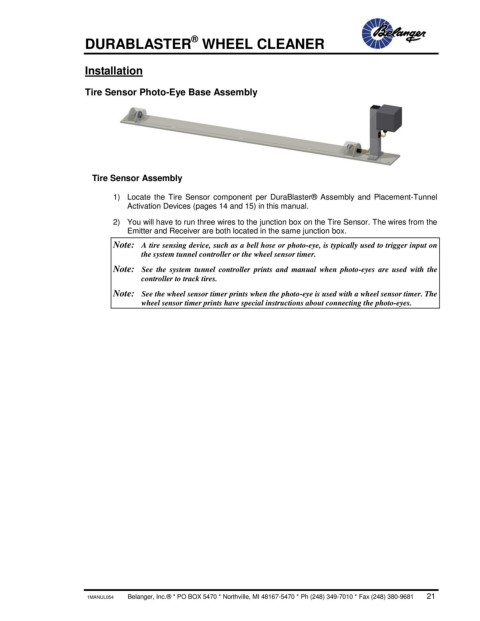

Tire Sensor Photo-Eye Base Assembly

Tire Sensor Assembly

1) Locate the Tire Sensor component per DuraBlaster® Assembly and Placement-Tunnel
Activation Devices (pages 14 and 15) in this manual.

2) You will have to run three wires to the junction box on the Tire Sensor. The wires from the
Emitter and Receiver are both located in the same junction box.
Note: A tire sensing device, such as a bell hose or photo-eye, is typically used to trigger input on
the system tunnel controller or the wheel sensor timer.
Note: See the system tunnel controller prints and manual when photo-eyes are used with the
controller to track tires.
Note: See the wheel sensor timer prints when the photo-eye is used with a wheel sensor timer. The
wheel sensor timer prints have special instructions about connecting the photo-eyes.
