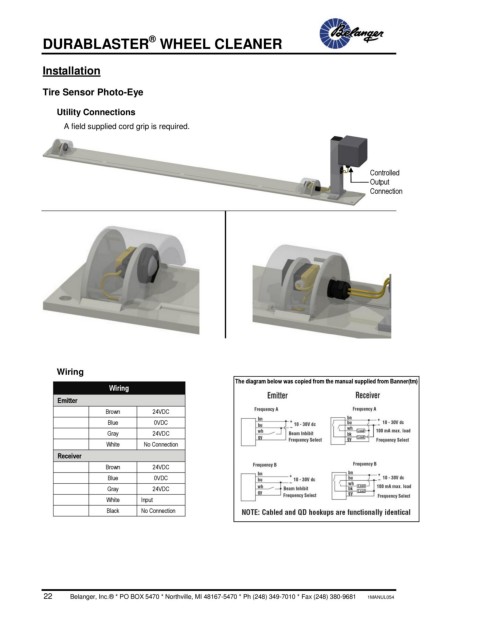

Page 28 - DuraBlaster® Wheel Cleaner

®
DURABLASTER WHEEL CLEANER

Installation

Tire Sensor Photo-Eye

Utility Connections
A field supplied cord grip is required.

Controlled
Output
Connection

Wiring
The diagram below was copied from the manual supplied from Banner(tm)
Wiring
Emitter
Brown 24VDC
Blue 0VDC
Gray 24VDC
White No Connection
Receiver
Brown 24VDC
Blue 0VDC
Gray 24VDC
White Input
Black No Connection
