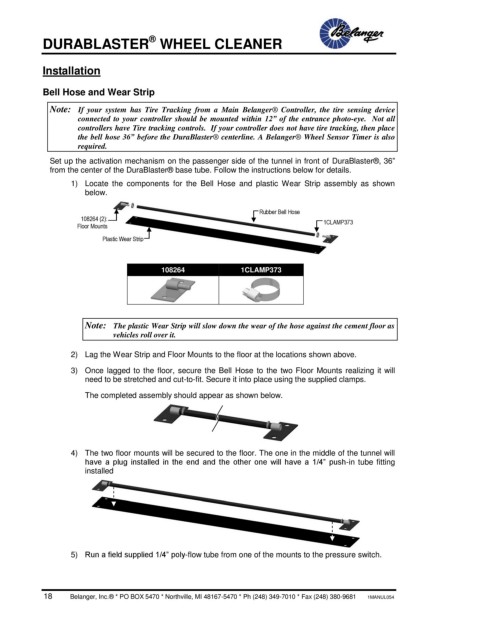

            DURABLASTER  WHEEL CLEANER

            Installation


            Bell Hose and Wear Strip

              Note:  If  your  system  has  Tire  Tracking  from  a  Main  Belanger®  Controller,  the  tire  sensing  device
                     connected to your controller should be mounted within 12” of the entrance photo-eye.  Not all
                     controllers have Tire tracking controls.  If your controller does not have tire tracking, then place
                     the bell hose 36” before the DuraBlaster® centerline. A Belanger® Wheel Sensor Timer is also
                     required.

              Set up the activation mechanism on the passenger side of the tunnel in front of DuraBlaster®, 36”
              from the center of the DuraBlaster® base tube. Follow the instructions below for details.
                   1)  Locate  the  components  for  the  Bell  Hose  and  plastic  Wear  Strip  assembly  as  shown
                       below.

                                                                   Rubber Bell Hose
                      108264 (2):                                                   1CLAMP373
                     Floor Mounts                                                   (2)

                           Plastic Wear Strip



                                          108264              1CLAMP373





                       Note:  The plastic Wear Strip will slow down the wear of the hose against the cement floor as
                              vehicles roll over it.

                   2)  Lag the Wear Strip and Floor Mounts to the floor at the locations shown above.
                   3)  Once lagged to the floor, secure the Bell Hose to the two Floor Mounts realizing it will
                       need to be stretched and cut-to-fit. Secure it into place using the supplied clamps.
                       The completed assembly should appear as shown below.







                   4)  The two floor mounts will be secured to the floor. The one in the middle of the tunnel will
                       have  a  plug  installed  in  the  end  and  the  other  one  will  have a 1/4” push-in tube fitting
                       installed











                   5)  Run a field supplied 1/4” poly-flow tube from one of the mounts to the pressure switch.
