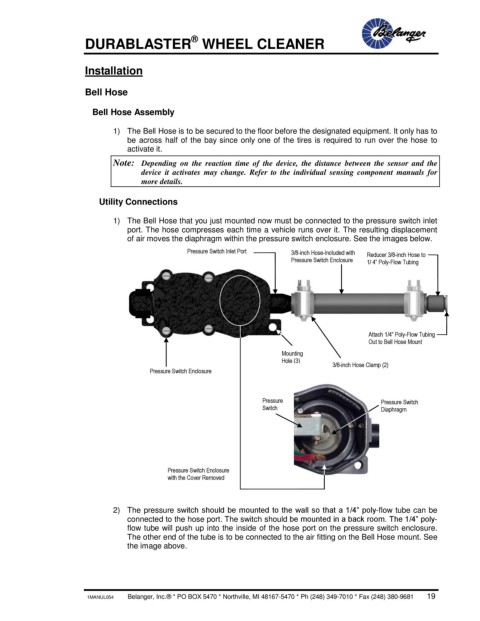

DURABLASTER WHEEL CLEANER

Installation

Bell Hose

Bell Hose Assembly

1) The Bell Hose is to be secured to the floor before the designated equipment. It only has to
be across half of the bay since only one of the tires is required to run over the hose to
activate it.
Note: Depending on the reaction time of the device, the distance between the sensor and the
device it activates may change. Refer to the individual sensing component manuals for
more details.

Utility Connections

1) The Bell Hose that you just mounted now must be connected to the pressure switch inlet
port. The hose compresses each time a vehicle runs over it. The resulting displacement
of air moves the diaphragm within the pressure switch enclosure. See the images below.

Pressure Switch Inlet Port 3/8-inch Hose-Included with Reducer 3/8-inch Hose to
Pressure Switch Enclosure 1/ 4” Poly-Flow Tubing

Attach 1/4” Poly-Flow Tubing
Out to Bell Hose Mount
Mounting
Hole (3)
3/8-inch Hose Clamp (2)
Pressure Switch Enclosure

Pressure Pressure Switch
Switch Diaphragm

Pressure Switch Enclosure
with the Cover Removed

2) The pressure switch should be mounted to the wall so that a 1/4” poly-flow tube can be
connected to the hose port. The switch should be mounted in a back room. The 1/4” poly-
flow tube will push up into the inside of the hose port on the pressure switch enclosure.
The other end of the tube is to be connected to the air fitting on the Bell Hose mount. See
the image above.
