DURABLASTER WHEEL CLEANER
Installation
Tire Sensor Photo-Eye
Modulation Frequency

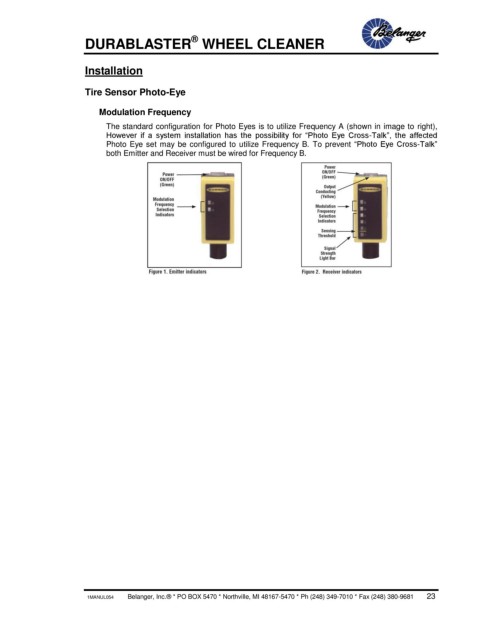

The standard configuration for Photo Eyes is to utilize Frequency A (shown in image to right),
However if a system installation has the possibility for “Photo Eye Cross-Talk”, the affected
Photo Eye set may be configured to utilize Frequency B. To prevent “Photo Eye Cross-Talk”
both Emitter and Receiver must be wired for Frequency B.
