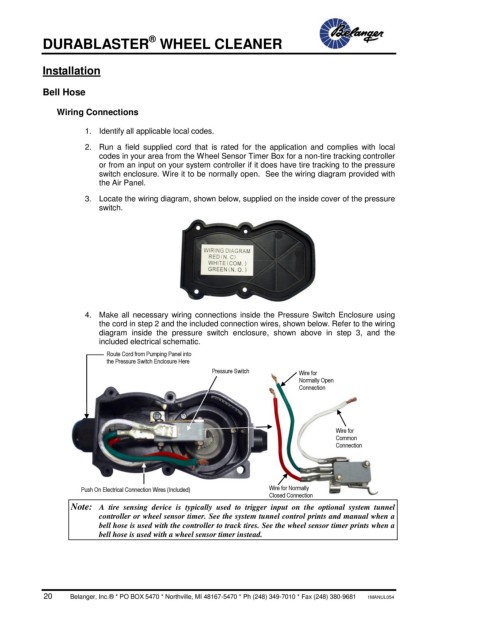

DURABLASTER WHEEL CLEANER

Installation

Bell Hose

Wiring Connections

1. Identify all applicable local codes.

2. Run a field supplied cord that is rated for the application and complies with local
codes in your area from the Wheel Sensor Timer Box for a non-tire tracking controller
or from an input on your system controller if it does have tire tracking to the pressure
switch enclosure. Wire it to be normally open. See the wiring diagram provided with
the Air Panel.

3. Locate the wiring diagram, shown below, supplied on the inside cover of the pressure
switch.

4. Make all necessary wiring connections inside the Pressure Switch Enclosure using
the cord in step 2 and the included connection wires, shown below. Refer to the wiring
diagram inside the pressure switch enclosure, shown above in step 3, and the
included electrical schematic.
Route Cord from Pumping Panel into
the Pressure Switch Enclosure Here
Pressure Switch Wire for

Normally Open
Connection

Wire for
Common
Connection

Push On Electrical Connection Wires (Included) Wire for Normally
Closed Connection
Note: A tire sensing device is typically used to trigger input on the optional system tunnel
controller or wheel sensor timer. See the system tunnel control prints and manual when a
bell hose is used with the controller to track tires. See the wheel sensor timer prints when a
bell hose is used with a wheel sensor timer instead.
