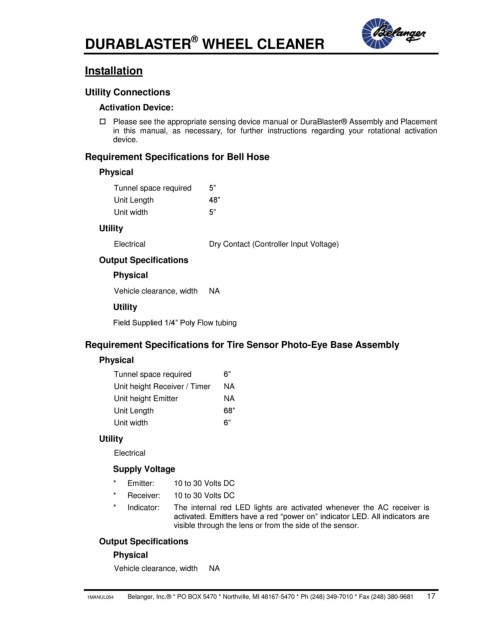

DURABLASTER WHEEL CLEANER

Installation

Utility Connections
Activation Device:

 Please see the appropriate sensing device manual or DuraBlaster® Assembly and Placement
in this manual, as necessary, for further instructions regarding your rotational activation
device.
Requirement Specifications for Bell Hose

Physical
Tunnel space required 5”
Unit Length 48”
Unit width 5”

Utility
Electrical Dry Contact (Controller Input Voltage)

Output Specifications
Physical

Vehicle clearance, width NA
Utility

Field Supplied 1/4” Poly Flow tubing

Requirement Specifications for Tire Sensor Photo-Eye Base Assembly

Physical
Tunnel space required 6”
Unit height Receiver / Timer NA
Unit height Emitter NA
Unit Length 68”
Unit width 6”
Utility

Electrical
Supply Voltage
* Emitter: 10 to 30 Volts DC
* Receiver: 10 to 30 Volts DC
* Indicator: The internal red LED lights are activated whenever the AC receiver is
activated. Emitters have a red “power on” indicator LED. All indicators are
visible through the lens or from the side of the sensor.

Output Specifications
Physical
Vehicle clearance, width NA
