DURABLASTER WHEEL CLEANER

Maintenance

Disassembly Procedure
To disassemble a DuraBlaster® perform the following:

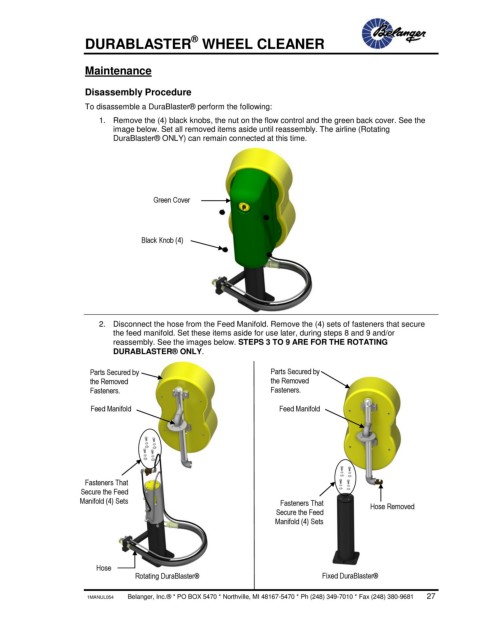

1. Remove the (4) black knobs, the nut on the flow control and the green back cover. See the
image below. Set all removed items aside until reassembly. The airline (Rotating
DuraBlaster® ONLY) can remain connected at this time.

Green Cover

Black Knob (4)

2. Disconnect the hose from the Feed Manifold. Remove the (4) sets of fasteners that secure
the feed manifold. Set these items aside for use later, during steps 8 and 9 and/or
reassembly. See the images below. STEPS 3 TO 9 ARE FOR THE ROTATING
DURABLASTER® ONLY.

Parts Secured by Parts Secured by
the Removed the Removed
Fasteners. Fasteners.
Feed Manifold Feed Manifold

Fasteners That
Secure the Feed
Manifold (4) Sets Fasteners That Hose Removed
Secure the Feed
Manifold (4) Sets

Hose
Rotating DuraBlaster® Fixed DuraBlaster®
