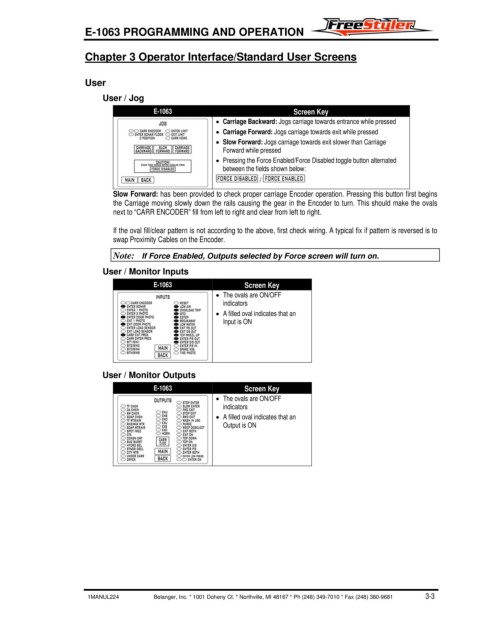

E-1063 PROGRAMMING AND OPERATION

Chapter 3 Operator Interface/Standard User Screens

User

User / Jog

E-1063 Screen Key
• Carriage Backward: Jogs carriage towards entrance while pressed
• Carriage Forward: Jogs carriage towards exit while pressed
• Slow Forward: Jogs carriage towards exit slower than Carriage
Forward while pressed
• Pressing the Force Enabled/Force Disabled toggle button alternated
between the fields shown below:
/

Slow Forward: has been provided to check proper carriage Encoder operation. Pressing this button first begins
the Carriage moving slowly down the rails causing the gear in the Encoder to turn. This should make the ovals
next to “CARR ENCODER” fill from left to right and clear from left to right.

If the oval fill/clear pattern is not according to the above, first check wiring. A typical fix if pattern is reversed is to
swap Proximity Cables on the Encoder.

Note: If Force Enabled, Outputs selected by Force screen will turn on.
User / Monitor Inputs

E-1063 Screen Key
• The ovals are ON/OFF
indicators
• A filled oval indicates that an
Input is ON

User / Monitor Outputs
E-1063 Screen Key
• The ovals are ON/OFF
indicators
• A filled oval indicates that an
Output is ON
