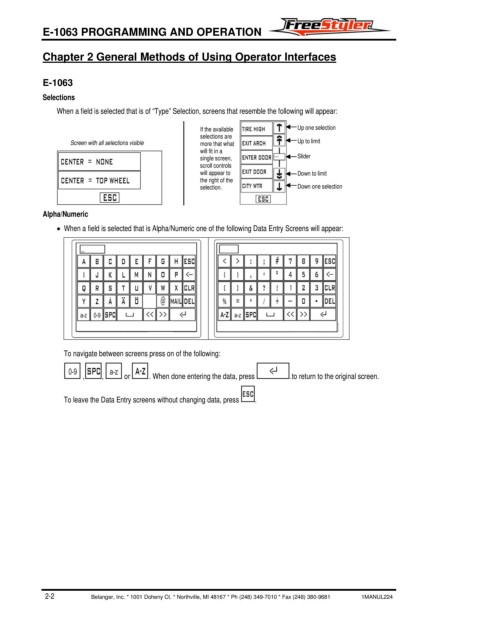

E-1063 PROGRAMMING AND OPERATION


            Chapter 2 General Methods of Using Operator Interfaces


            E-1063

            Selections
               When a field is selected that is of “Type” Selection, screens that resemble the following will appear:

                                                    If the available         Up one selection
                                                    selections are
                   Screen with all selections visible   more that what       Up to limit
                                                    will fit in a
                                                    single screen,           Slider
                                                    scroll controls
                                                    will appear to           Down to limit
                                                    the right of the
                                                    selection.               Down one selection


            Alpha/Numeric

               •  When a field is selected that is Alpha/Numeric one of the following Data Entry Screens will appear:

















                 To navigate between screens press on of the following:

                       ,   ,     or    . When done entering the data, press   .to return to the original screen.


                 To leave the Data Entry screens without changing data, press   .
