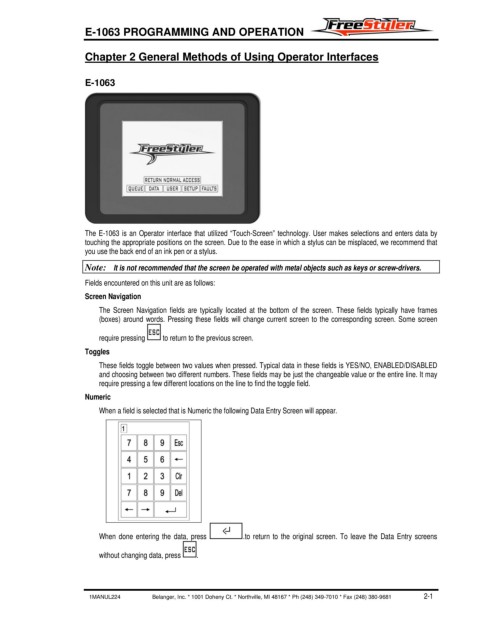

E-1063 PROGRAMMING AND OPERATION


                       Chapter 2 General Methods of Using Operator Interfaces


                       E-1063





















                       The E-1063 is an Operator interface that utilized “Touch-Screen” technology. User makes selections and enters data by
                       touching the appropriate positions on the screen. Due to the ease in which a stylus can be misplaced, we recommend that
                       you use the back end of an ink pen or a stylus.

                       Note:  It is not recommended that the screen be operated with metal objects such as keys or screw-drivers.
                       Fields encountered on this unit are as follows:
                       Screen Navigation

                          The Screen Navigation fields are typically located at the  bottom of the screen. These fields typically have frames
                          (boxes) around words. Pressing these fields will change current screen to the corresponding screen. Some screen

                          require pressing    to return to the previous screen.
                       Toggles

                          These fields toggle between two values when pressed. Typical data in these fields is YES/NO, ENABLED/DISABLED
                          and choosing between two different numbers. These fields may be just the changeable value or the entire line. It may
                          require pressing a few different locations on the line to find the toggle field.
                       Numeric

                          When a field is selected that is Numeric the following Data Entry Screen will appear.

















                          When done entering the data, press   .to return to the original screen. To leave the Data Entry screens

                          without changing data, press   .




                        1MANUL224                   Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681                     2-1
