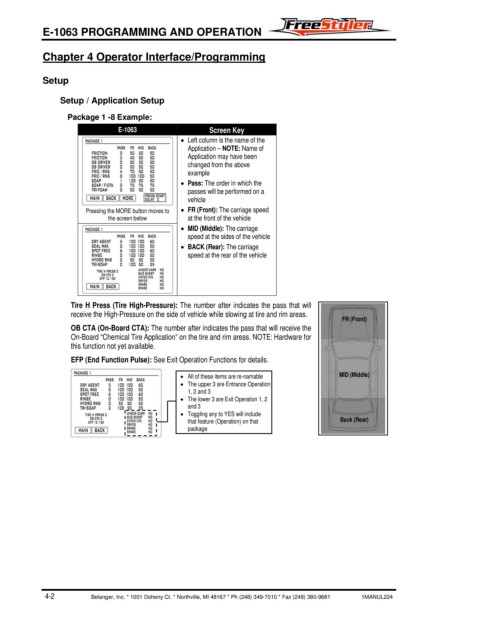

Page 30 - FreeStyler® E-1063 Programming and Operation Manual

E-1063 PROGRAMMING AND OPERATION

Chapter 4 Operator Interface/Programming

Setup

Setup / Application Setup

Package 1 -8 Example:
E-1063 Screen Key
• Left column is the name of the
Application – NOTE: Name of
Application may have been
changed from the above
example
• Pass: The order in which the
passes will be performed on a
vehicle
Pressing the MORE button moves to • FR (Front): The carriage speed
the screen below at the front of the vehicle
• MID (Middle): The carriage
speed at the sides of the vehicle
• BACK (Rear): The carriage
speed at the rear of the vehicle

Tire H Press (Tire High-Pressure): The number after indicates the pass that will
receive the High-Pressure on the side of vehicle while slowing at tire and rim areas.
FR (Front)
OB CTA (On-Board CTA): The number after indicates the pass that will receive the
On-Board “Chemical Tire Application” on the tire and rim areas. NOTE: Hardware for
this function not yet available.

EFP (End Function Pulse): See Exit Operation Functions for details.
• All of these items are re-namable MID (Middle)
• The upper 3 are Entrance Operation
1, 2 and 3
• The lower 3 are Exit Operation 1, 2
and 3
• Toggling any to YES will include
that feature (Operation) on that Back (Rear)
package
