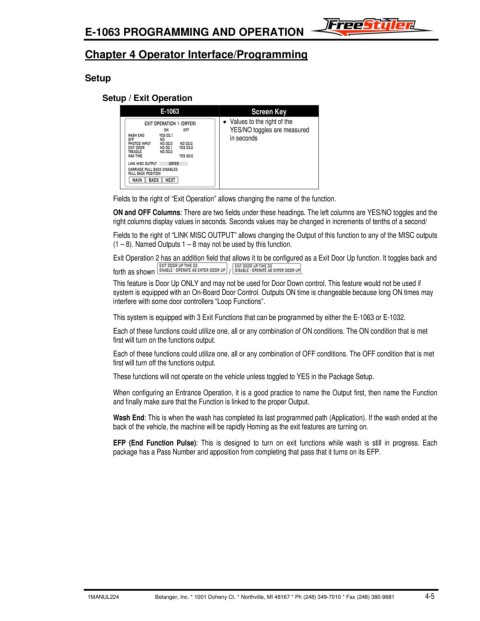

Page 33 - FreeStyler® E-1063 Programming and Operation Manual

E-1063 PROGRAMMING AND OPERATION

Chapter 4 Operator Interface/Programming

Setup

Setup / Exit Operation
E-1063 Screen Key
• Values to the right of the
YES/NO toggles are measured
in seconds

Fields to the right of “Exit Operation” allows changing the name of the function.
ON and OFF Columns: There are two fields under these headings. The left columns are YES/NO toggles and the
right columns display values in seconds. Seconds values may be changed in increments of tenths of a second/

Fields to the right of “LINK MISC OUTPUT” allows changing the Output of this function to any of the MISC outputs
(1 – 8). Named Outputs 1 – 8 may not be used by this function.
Exit Operation 2 has an addition field that allows it to be configured as a Exit Door Up function. It toggles back and

forth as shown / .
This feature is Door Up ONLY and may not be used for Door Down control. This feature would not be used if
system is equipped with an On-Board Door Control. Outputs ON time is changeable because long ON times may
interfere with some door controllers “Loop Functions”.

This system is equipped with 3 Exit Functions that can be programmed by either the E-1063 or E-1032.
Each of these functions could utilize one, all or any combination of ON conditions. The ON condition that is met
first will turn on the functions output.
Each of these functions could utilize one, all or any combination of OFF conditions. The OFF condition that is met
first will turn off the functions output.
These functions will not operate on the vehicle unless toggled to YES in the Package Setup.

When configuring an Entrance Operation, it is a good practice to name the Output first, then name the Function
and finally make sure that the Function is linked to the proper Output.

Wash End: This is when the wash has completed its last programmed path (Application). If the wash ended at the
back of the vehicle, the machine will be rapidly Homing as the exit features are turning on.

EFP (End Function Pulse): This is designed to turn on exit functions while wash is still in progress. Each
package has a Pass Number and apposition from completing that pass that it turns on its EFP.
