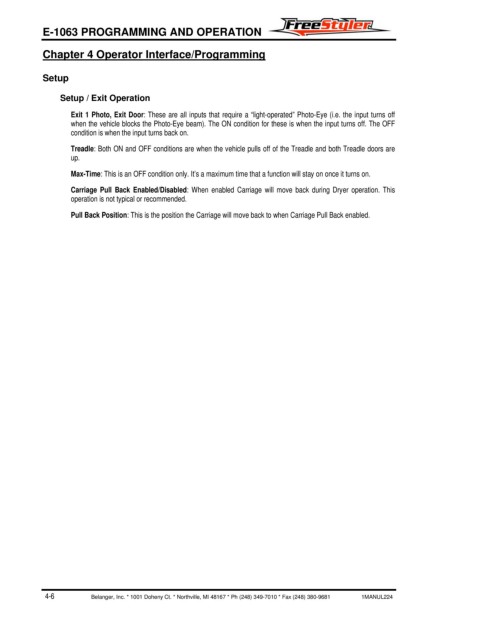

Page 34 - FreeStyler® E-1063 Programming and Operation Manual
P. 34

E-1063 PROGRAMMING AND OPERATION


            Chapter 4 Operator Interface/Programming


            Setup

                Setup / Exit Operation

                   Exit 1 Photo, Exit Door: These are all inputs that require a “light-operated” Photo-Eye (i.e. the input turns off
                   when the vehicle blocks the Photo-Eye beam). The ON condition for these is when the input turns off. The OFF
                   condition is when the input turns back on.

                   Treadle: Both ON and OFF conditions are when the vehicle pulls off of the Treadle and both Treadle doors are
                   up.

                   Max-Time: This is an OFF condition only. It’s a maximum time that a function will stay on once it turns on.

                   Carriage Pull Back Enabled/Disabled: When enabled Carriage will move back during Dryer operation. This
                   operation is not typical or recommended.

                   Pull Back Position: This is the position the Carriage will move back to when Carriage Pull Back enabled.
