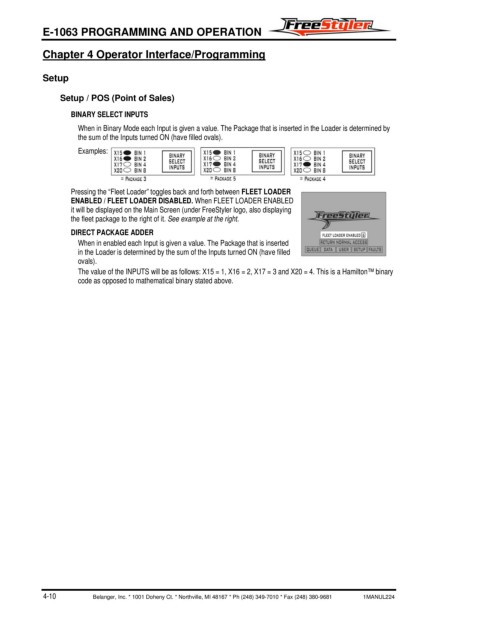

Page 38 - FreeStyler® E-1063 Programming and Operation Manual
P. 38

E-1063 PROGRAMMING AND OPERATION


            Chapter 4 Operator Interface/Programming


            Setup

                Setup / POS (Point of Sales)

                   BINARY SELECT INPUTS
                     When in Binary Mode each Input is given a value. The Package that is inserted in the Loader is determined by
                     the sum of the Inputs turned ON (have filled ovals).
                     Examples:



                   Pressing the “Fleet Loader” toggles back and forth between FLEET LOADER
                   ENABLED / FLEET LOADER DISABLED. When FLEET LOADER ENABLED
                   it will be displayed on the Main Screen (under FreeStyler logo, also displaying
                   the fleet package to the right of it. See example at the right.
                   DIRECT PACKAGE ADDER
                     When in enabled each Input is given a value. The Package that is inserted
                     in the Loader is determined by the sum of the Inputs turned ON (have filled
                     ovals).
                     The value of the INPUTS will be as follows: X15 = 1, X16 = 2, X17 = 3 and X20 = 4. This is a Hamilton™ binary
                     code as opposed to mathematical binary stated above.















































            4-10                 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681                    1MANUL224
