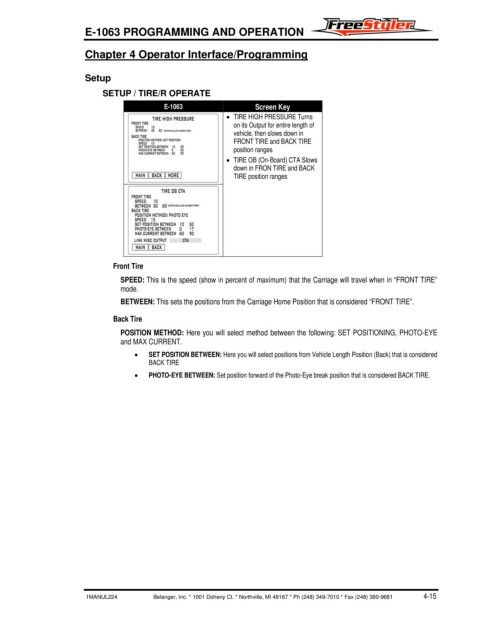

Page 43 - FreeStyler® E-1063 Programming and Operation Manual

E-1063 PROGRAMMING AND OPERATION

Chapter 4 Operator Interface/Programming

Setup
SETUP / TIRE/R OPERATE
E-1063 Screen Key
• TIRE HIGH PRESSURE Turns
on its Output for entire length of
vehicle, then slows down in
FRONT TIRE and BACK TIRE
position ranges
• TIRE OB (On-Board) CTA Slows
down in FRON TIRE and BACK
TIRE position ranges

Front Tire
SPEED: This is the speed (show in percent of maximum) that the Carriage will travel when in “FRONT TIRE”
mode.
BETWEEN: This sets the positions from the Carriage Home Position that is considered “FRONT TIRE”.

Back Tire
POSITION METHOD: Here you will select method between the following: SET POSITIONING, PHOTO-EYE
and MAX CURRENT.
• SET POSITION BETWEEN: Here you will select positions from Vehicle Length Position (Back) that is considered
BACK TIRE
• PHOTO-EYE BETWEEN: Set position forward of the Photo-Eye break position that is considered BACK TIRE.

1MANUL224 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 4-15
