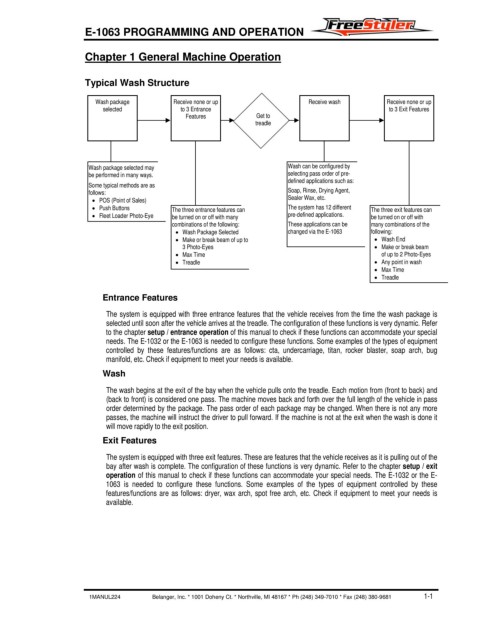

E-1063 PROGRAMMING AND OPERATION

Chapter 1 General Machine Operation

Typical Wash Structure

Wash package Receive none or up Receive wash Receive none or up
selected to 3 Entrance to 3 Exit Features
Features Get to
treadle

Wash package selected may Wash can be configured by
be performed in many ways. selecting pass order of pre-
Some typical methods are as defined applications such as:
follows: Soap, Rinse, Drying Agent,
• POS (Point of Sales) Sealer Wax, etc.
• Push Buttons The three entrance features can The system has 12 different The three exit features can
• Fleet Loader Photo-Eye be turned on or off with many pre-defined applications. be turned on or off with
combinations of the following: These applications can be many combinations of the

• Wash Package Selected changed via the E-1063 following:
• Make or break beam of up to • Wash End
3 Photo-Eyes • Make or break beam
• Max Time of up to 2 Photo-Eyes
• Treadle • Any point in wash
• Max Time
• Treadle

Entrance Features
The system is equipped with three entrance features that the vehicle receives from the time the wash package is
selected until soon after the vehicle arrives at the treadle. The configuration of these functions is very dynamic. Refer
to the chapter setup / entrance operation of this manual to check if these functions can accommodate your special
needs. The E-1032 or the E-1063 is needed to configure these functions. Some examples of the types of equipment
controlled by these features/functions are as follows: cta, undercarriage, titan, rocker blaster, soap arch, bug
manifold, etc. Check if equipment to meet your needs is available.

Wash

The wash begins at the exit of the bay when the vehicle pulls onto the treadle. Each motion from (front to back) and
(back to front) is considered one pass. The machine moves back and forth over the full length of the vehicle in pass
order determined by the package. The pass order of each package may be changed. When there is not any more
passes, the machine will instruct the driver to pull forward. If the machine is not at the exit when the wash is done it
will move rapidly to the exit position.

Exit Features
The system is equipped with three exit features. These are features that the vehicle receives as it is pulling out of the
bay after wash is complete. The configuration of these functions is very dynamic. Refer to the chapter setup / exit
operation of this manual to check if these functions can accommodate your special needs. The E-1032 or the E-
1063 is needed to configure these functions. Some examples of the types of equipment controlled by these
features/functions are as follows: dryer, wax arch, spot free arch, etc. Check if equipment to meet your needs is
available.
