DURAFLO™ 18 GPM PUMPING STATIONS

Assembly

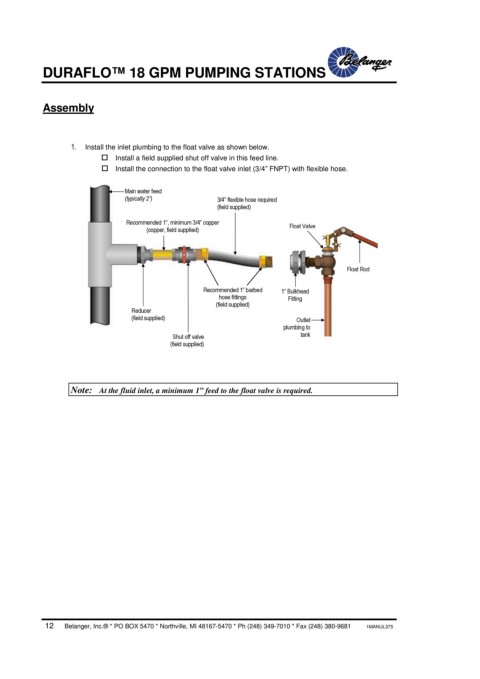

1. Install the inlet plumbing to the float valve as shown below.
Install a field supplied shut off valve in this feed line.
Install the connection to the float valve inlet (3/4” FNPT) with flexible hose.

Main water feed
(typically 2”) 3/4” flexible hose required
(field supplied)
Recommended 1”, minimum 3/4” copper
(copper, field supplied) Float Valve

Float Rod

Recommended 1” barbed 1” Bulkhead
hose fittings Fitting
(field supplied)
Reducer
(field supplied) Outlet
plumbing to

Shut off valve tank
(field supplied)

Note: At the fluid inlet, a minimum 1” feed to the float valve is required.
