DRYLITE DRYER

Chapter 8: Maintenance

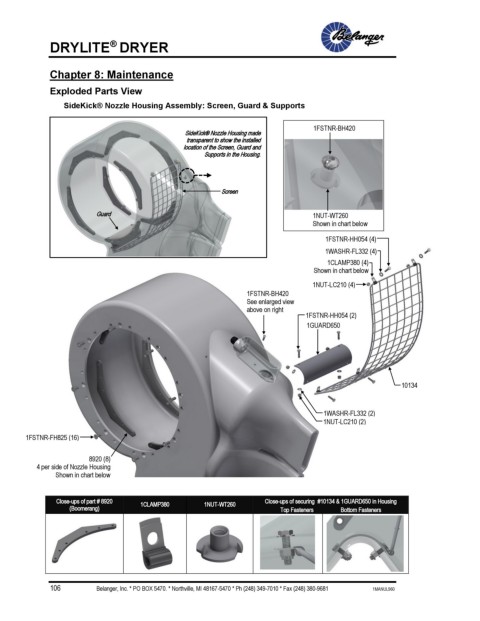

Exploded Parts View
SideKick® Nozzle Housing Assembly: Screen, Guard & Supports

SideKick® Nozzle Housing made 1FSTNR-BH420
transparent to show the installed
location of the Screen, Guard and
Supports in the Housing.

Screen

Guard 1NUT-WT260
Shown in chart below

1FSTNR-HH054 (4)
Support
1WASHR-FL332 (4)
1CLAMP380 (4)
Shown in chart below

1NUT-LC210 (4)
1FSTNR-BH420
See enlarged view
above on right
1FSTNR-HH054 (2)
1GUARD650

10134

1WASHR-FL332 (2)
1NUT-LC210 (2)
1FSTNR-FH825 (16)

8920 (8)
4 per side of Nozzle Housing
Shown in chart below

Close-ups of part # 8920 1CLAMP380 1NUT-WT260 Close-ups of securing #10134 & 1GUARD650 in Housing
(Boomerang) Top Fasteners Bottom Fasteners
