DRYLITE DRYER

Chapter 8: Maintenance

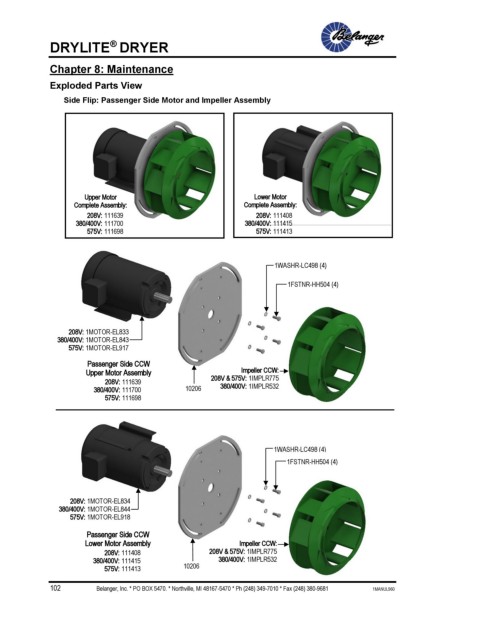

Exploded Parts View
Side Flip: Passenger Side Motor and Impeller Assembly

Upper Motor
Lower Motor
Complete Assembly: Complete Assembly:
208V: 111408
208V: 111639
380/400V: 111700 380/400V: 111415
575V: 111698 575V: 111413

1WASHR-LC498 (4)

1FSTNR-HH504 (4)

208V: 1MOTOR-EL833
380/400V: 1MOTOR-EL843
575V: 1MOTOR-EL917
Passenger Side CCW
Upper Motor Assembly Impeller CCW:
208V: 111639 208V & 575V: 1IMPLR775
380/400V: 111700 10206 380/400V: 1IMPLR532
575V: 111698
10206

1WASHR-LC498 (4)
1FSTNR-HH504 (4)

208V: 1MOTOR-EL834
380/400V: 1MOTOR-EL844
575V: 1MOTOR-EL918
Passenger Side CCW
Lower Motor Assembly Impeller CCW:
208V: 111408 208V & 575V: 1IMPLR775
380/400V: 111415 380/400V: 1IMPLR532
575V: 111413 10206

102 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL960
