DRYLITE DRYER

Chapter 8: Maintenance

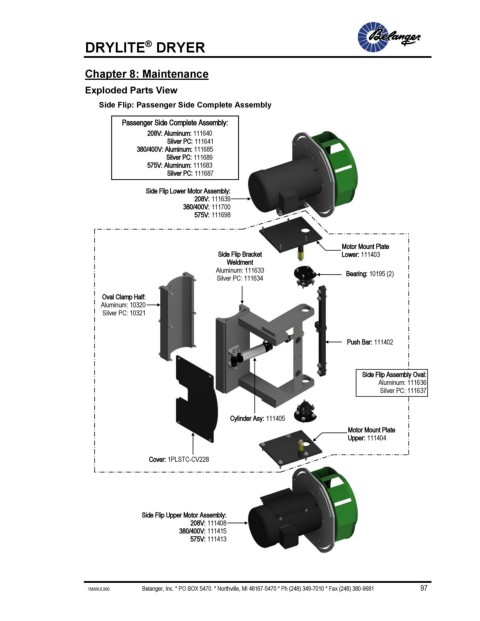

Exploded Parts View
Side Flip: Passenger Side Complete Assembly

Passenger Side Complete Assembly:
208V: Aluminum: 111640
Silver PC: 111641
380/400V: Aluminum: 111685
Silver PC: 111689
575V: Aluminum: 111683
Silver PC: 111687

Side Flip Lower Motor Assembly:
208V: 111639
380/400V: 111700
575V: 111698

Motor Mount Plate
Side Flip Bracket Lower: 111403
Weldment
Aluminum: 111633 Bearing: 10195 (2)
Silver PC: 111634

Oval Clamp Half:
Aluminum: 10320
Silver PC: 10321

Push Bar: 111402

Side Flip Assembly Oval:
Aluminum: 111636
Silver PC: 111637

Cylinder Asy: 111405
Motor Mount Plate
Upper: 111404

Cover: 1PLSTC-CV228

Side Flip Upper Motor Assembly:
208V: 111408
380/400V: 111415
575V: 111413

1MANUL960 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 97
