DRYLITE DRYER
Chapter 8: Maintenance

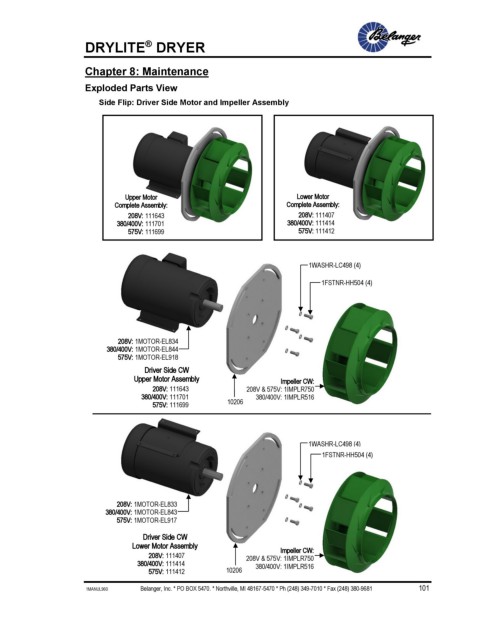

Exploded Parts View
Side Flip: Driver Side Motor and Impeller Assembly
Upper Motor Lower Motor
Complete Assembly: Complete Assembly:
208V: 111643 208V: 111407
380/400V: 111701 380/400V: 111414
575V: 111699 575V: 111412
1WASHR-LC498 (4)
1FSTNR-HH504 (4)
208V: 1MOTOR-EL834
380/400V: 1MOTOR-EL844
575V: 1MOTOR-EL918
Driver Side CW
Upper Motor Assembly Impeller CW:
208V: 111643 208V & 575V: 1IMPLR750
380/400V: 111701 380/400V: 1IMPLR516
575V: 111699 10206
10206
1WASHR-LC498 (4)
1FSTNR-HH504 (4)
208V: 1MOTOR-EL833
380/400V: 1MOTOR-EL843
575V: 1MOTOR-EL917
Driver Side CW
Lower Motor Assembly Impeller CW:
208V: 111407 208V & 575V: 1IMPLR750
380/400V: 111414 380/400V: 1IMPLR516
575V: 111412 10206
1MANUL960 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 101
