P. 109

®
                       DRYLITE  DRYER

                       Chapter 8: Maintenance

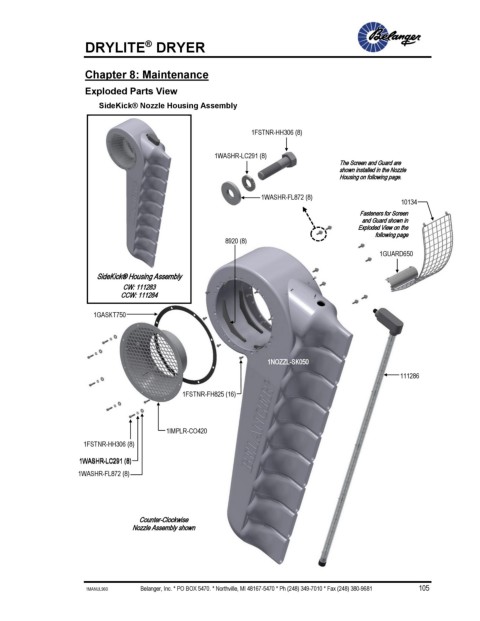

                       Exploded Parts View
                          SideKick® Nozzle Housing Assembly


                                                                 1FSTNR-HH306 (8)


                                                        1WASHR-LC291 (8)                The Screen and Guard are
                                                                                        shown installed in the Nozzle
                                                                                        Housing on following page.

                                                                    1WASHR-FL872 (8)                   10134

                                                                                             Fasteners for Screen
                                                                                             and Guard shown in
                                                                                            Exploded View on the
                                                                                                 following page
                                                          8920 (8)
                                                                                                  1GUARD650


                          SideKick® Housing Assembly
                                CW: 111283
                                CCW: 111284


                         1GASKT750





                                                                     1NOZZL-SK050
                                                                                                       111286

                                               1FSTNR-FH825 (16)




                                           1IMPLR-CO420
                      1FSTNR-HH306 (8)

                     1WASHR-LC291 (8)
                     1WASHR-LC291 (8)
                     1WASHR-FL872 (8)





                                     Counter-Clockwise
                                   Nozzle Assembly shown






                       1MANUL960                         Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681                          105
