DRYLITE DRYER
Chapter 8: Maintenance
Exploded Parts View
Side Flip: Push Bar to Nozzle Mount Plate
1FSTNR-HH558 (4)
1WASHR-LC498 (4)
1WASHR-FL706 (4)
See Enlarged
View above right
1FSTNR-HH825
1WASHR-LC830

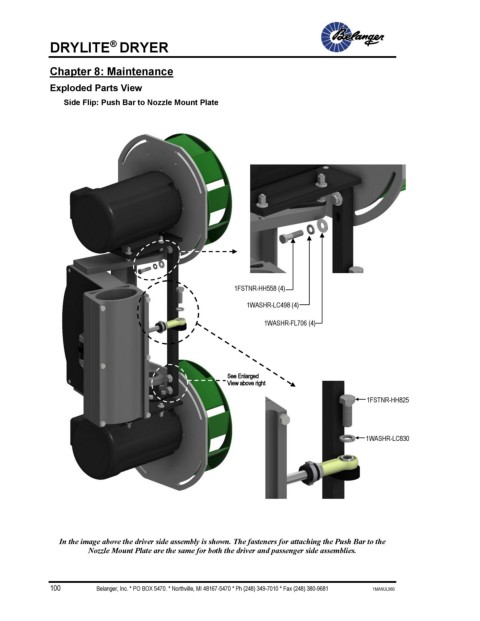

In the image above the driver side assembly is shown. The fasteners for attaching the Push Bar to the
Nozzle Mount Plate are the same for both the driver and passenger side assemblies.
