DRYLITE DRYER

Chapter 8: Maintenance

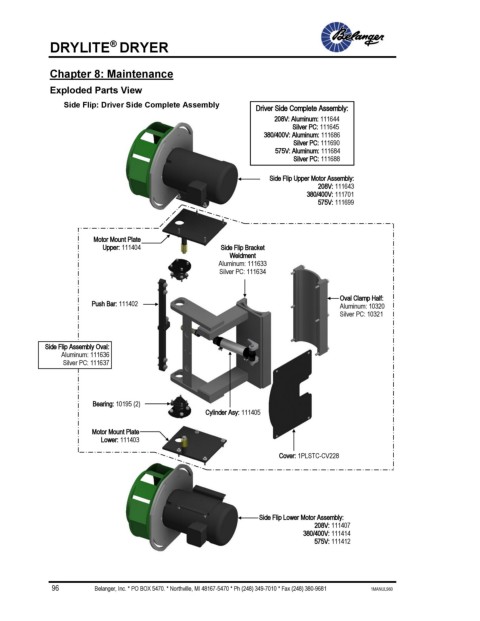

Exploded Parts View
Side Flip: Driver Side Complete Assembly Driver Side Complete Assembly:
208V: Aluminum: 111644
Silver PC: 111645
380/400V: Aluminum: 111686
Silver PC: 111690
575V: Aluminum: 111684
Silver PC: 111688

Side Flip Upper Motor Assembly:
208V: 111643
380/400V: 111701
575V: 111699

Motor Mount Plate
Upper: 111404 Side Flip Bracket
Weldment
Aluminum: 111633
Silver PC: 111634

Oval Clamp Half:
Push Bar: 111402 Aluminum: 10320
Silver PC: 10321

Side Flip Assembly Oval:
Aluminum: 111636
Silver PC: 111637

Bearing: 10195 (2)
Cylinder Asy: 111405

Motor Mount Plate
Lower: 111403
Cover: 1PLSTC-CV228

Side Flip Lower Motor Assembly:
208V: 111407
380/400V: 111414
575V: 111412

96 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL960
