DRYLITE DRYER

Chapter 8: Maintenance

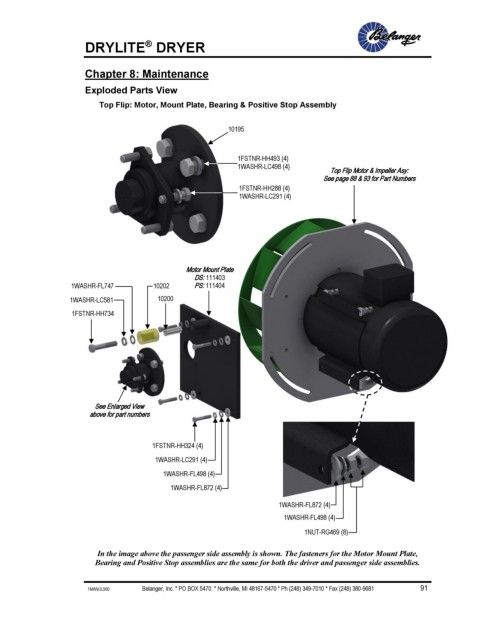

Exploded Parts View
Top Flip: Motor, Mount Plate, Bearing & Positive Stop Assembly

10195

1FSTNR-HH493 (4)
1WASHR-LC498 (4)
Top Flip Motor & Impeller Asy:
See page 88 & 93 for Part Numbers
1FSTNR-HH288 (4)
1WASHR-LC291 (4)

Motor Mount Plate
DS: 111403
1WASHR-FL747 10202 PS: 111404
1WASHR-LC581 10200
1FSTNR-HH734

See Enlarged View
above for part numbers

1FSTNR-HH324 (4)

1WASHR-LC291 (4)
1WASHR-FL498 (4)

1WASHR-FL872 (4)

1WASHR-FL872 (4)
1WASHR-FL498 (4)

1NUT-RG469 (8)

In the image above the passenger side assembly is shown. The fasteners for the Motor Mount Plate,
Bearing and Positive Stop assemblies are the same for both the driver and passenger side assemblies.
