DRYLITE DRYER

Chapter 8: Maintenance

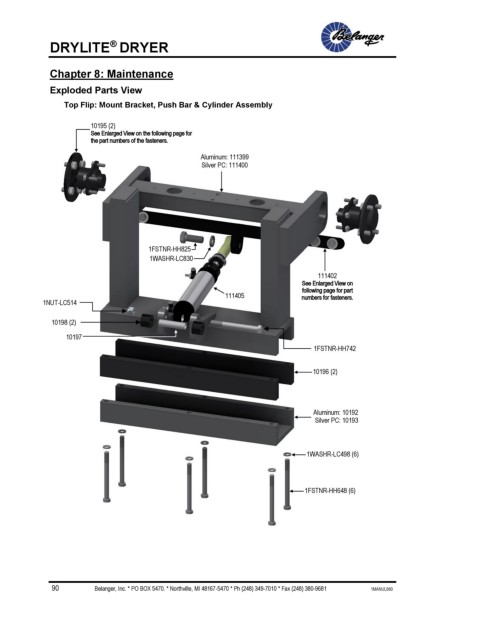

Exploded Parts View
Top Flip: Mount Bracket, Push Bar & Cylinder Assembly

10195 (2)
See Enlarged View on the following page for
the part numbers of the fasteners.

Aluminum: 111399
Silver PC: 111400

1FSTNR-HH825
1WASHR-LC830

111402
See Enlarged View on
following page for part
111405 numbers for fasteners.
1NUT-LC514

10198 (2)
10197
1FSTNR-HH742

10196 (2)

Aluminum: 10192
Silver PC: 10193

1WASHR-LC498 (6)

1FSTNR-HH648 (6)
