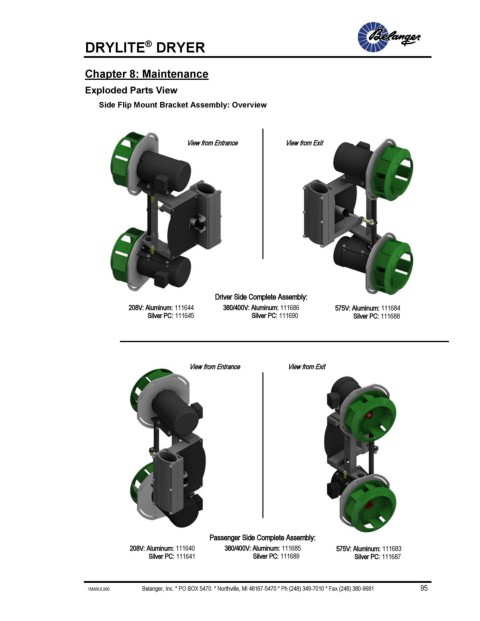

DRYLITE DRYER
Chapter 8: Maintenance
Exploded Parts View
Side Flip Mount Bracket Assembly: Overview
View from Entrance View from Exit
Driver Side Complete Assembly:
208V: Aluminum: 111644 380/400V: Aluminum: 111686 575V: Aluminum: 111684
Silver PC: 111645 Silver PC: 111690 Silver PC: 111688
View from Entrance View from Exit
Passenger Side Complete Assembly:
208V: Aluminum: 111640 380/400V: Aluminum: 111685 575V: Aluminum: 111683
Silver PC: 111641 Silver PC: 111689 Silver PC: 111687
