Page 103 - DryLite® Dryers
P. 103
®
DRYLITE DRYER
Chapter 8: Maintenance

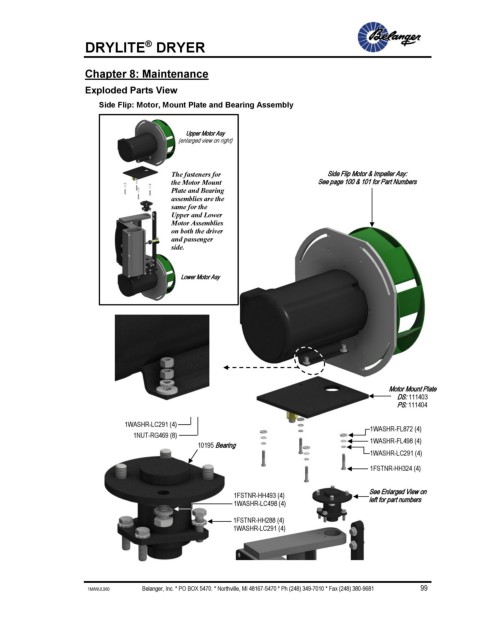

Exploded Parts View
Side Flip: Motor, Mount Plate and Bearing Assembly
Upper Motor Asy
(enlarged view on right)
The fasteners for Side Flip Motor & Impeller Asy:
the Motor Mount See page 100 & 101 for Part Numbers
Plate and Bearing
assemblies are the
same for the
Upper and Lower
Motor Assemblies
on both the driver
and passenger
side.
Lower Motor Asy
Motor Mount Plate
DS: 111403
PS: 111404
1WASHR-FL872 (4)
1WASHR-LC291 (4) 1WASHR-FL872 (4)
1NUT-RG469 (8)
10195 Bearing 1WASHR-FL498 (4)
1WASHR-LC291 (4)
1FSTNR-HH324 (4)
See Enlarged View on
1FSTNR-HH493 (4) left for part numbers
1WASHR-LC498 (4)
1FSTNR-HH288 (4)
1WASHR-LC291 (4)
1MANUL960 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 99
