DRYLITE DRYER

Chapter 8: Maintenance

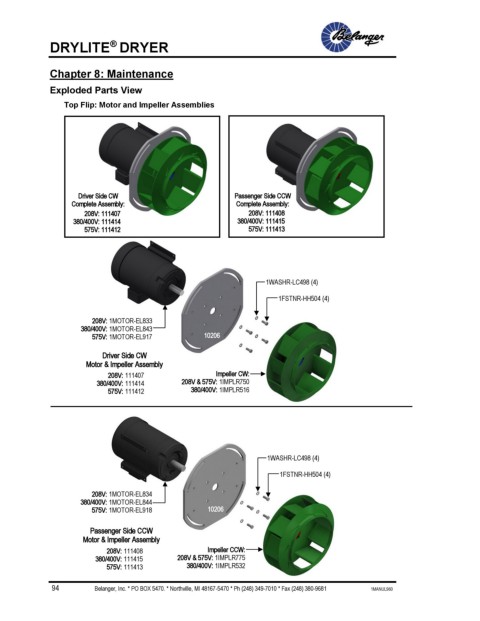

Exploded Parts View
Top Flip: Motor and Impeller Assemblies

Driver Side CW Passenger Side CCW
Complete Assembly: Complete Assembly:
208V: 111407 208V: 111408
380/400V: 111414 380/400V: 111415
575V: 111412 575V: 111413

1WASHR-LC498 (4)

1FSTNR-HH504 (4)

208V: 1MOTOR-EL833
380/400V: 1MOTOR-EL843
575V: 1MOTOR-EL917 10206

Driver Side CW
Motor & Impeller Assembly
208V: 111407 Impeller CW:
380/400V: 111414 208V & 575V: 1IMPLR750
575V: 111412 380/400V: 1IMPLR516

1WASHR-LC498 (4)

1FSTNR-HH504 (4)

208V: 1MOTOR-EL834
380/400V: 1MOTOR-EL844
575V: 1MOTOR-EL918 10206

Passenger Side CCW
Motor & Impeller Assembly
208V: 111408 Impeller CCW:
380/400V: 111415 208V & 575V: 1IMPLR775
575V: 111413 380/400V: 1IMPLR532
