DRYLITE DRYER
Chapter 8: Maintenance

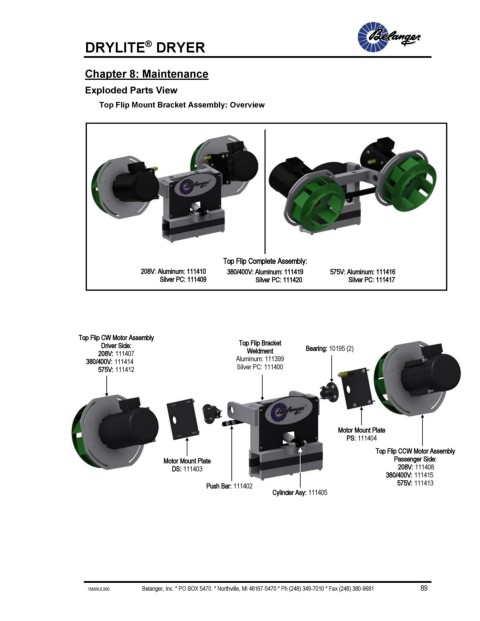

Exploded Parts View
Top Flip Mount Bracket Assembly: Overview
View from Exit
View from Entrance
Top Flip Complete Assembly:
208V: Aluminum: 111410 380/400V: Aluminum: 111419 575V: Aluminum: 111416
Silver PC: 111409 Silver PC: 111420 Silver PC: 111417
Top Flip CW Motor Assembly
Driver Side: Top Flip Bracket Bearing: 10195 (2)
208V: 111407 Weldment
380/400V: 111414 Aluminum: 111399
575V: 111412 Silver PC: 111400
Motor Mount Plate
PS: 111404
Top Flip CCW Motor Assembly
Motor Mount Plate Passenger Side:
DS: 111403 208V: 111408
380/400V: 111415
Push Bar: 111402 575V: 111413
Cylinder Asy: 111405
