DRYLITE DRYER

Chapter 8: Maintenance

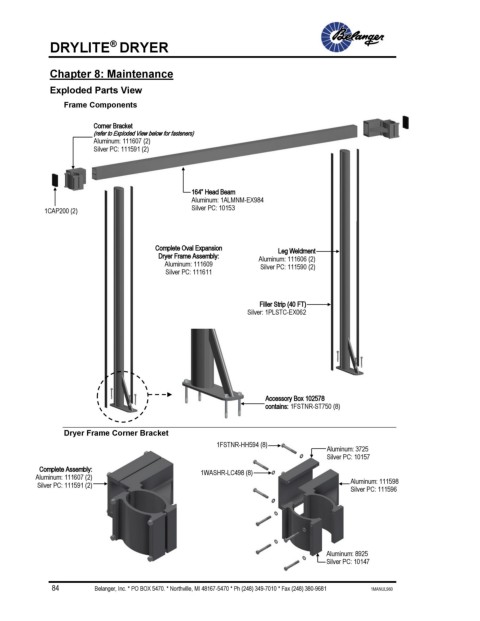

Exploded Parts View
Frame Components

Corner Bracket
(refer to Exploded View below for fasteners)
Aluminum: 111607 (2)
Silver PC: 111591 (2)

164” Head Beam
Aluminum: 1ALMNM-EX984
1CAP200 (2) Silver PC: 10153

Complete Oval Expansion Leg Weldment
Dryer Frame Assembly: Aluminum: 111606 (2)
Aluminum: 111609 Silver PC: 111590 (2)
Silver PC: 111611

Filler Strip (40 FT)
Silver: 1PLSTC-EX062

Accessory Box 102578
contains: 1FSTNR-ST750 (8)

Dryer Frame Corner Bracket
1FSTNR-HH594 (8)
Aluminum: 3725
Silver PC: 10157
Complete Assembly: 1WASHR-LC498 (8)
Aluminum: 111607 (2) Aluminum: 111598
Silver PC: 111591 (2)
Silver PC: 111596

Aluminum: 8925
Silver PC: 10147
