DRYLITE DRYER

Chapter 7: Utilities for DryLite®

Air Connections: Air Panels to Top Flip and Side Flip Cylinders

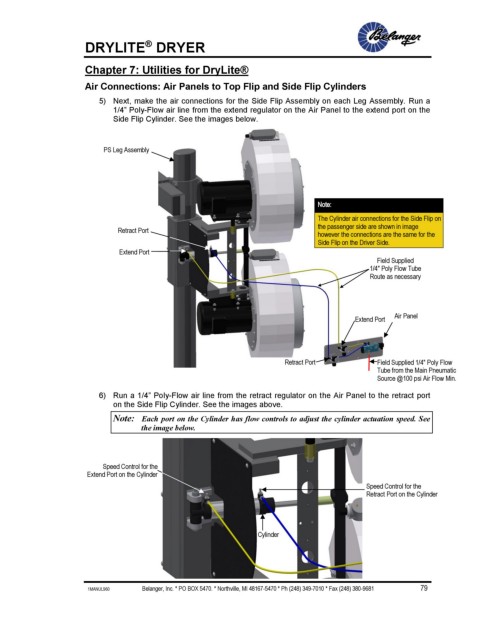

5) Next, make the air connections for the Side Flip Assembly on each Leg Assembly. Run a
1/4” Poly-Flow air line from the extend regulator on the Air Panel to the extend port on the
Side Flip Cylinder. See the images below.

PS Leg Assembly

Note:
The Cylinder air connections for the Side Flip on
the passenger side are shown in image
Retract Port
however the connections are the same for the
Side Flip on the Driver Side.
Extend Port
Field Supplied
1/4" Poly Flow Tube
Route as necessary

Extend Port Air Panel

Retract Port Field Supplied 1/4" Poly Flow

Tube from the Main Pneumatic
Source @100 psi Air Flow Min.

6) Run a 1/4” Poly-Flow air line from the retract regulator on the Air Panel to the retract port
on the Side Flip Cylinder. See the images above.
Note: Each port on the Cylinder has flow controls to adjust the cylinder actuation speed. See
the image below.

Speed Control for the
Extend Port on the Cylinder
Speed Control for the
Retract Port on the Cylinder

Cylinder
