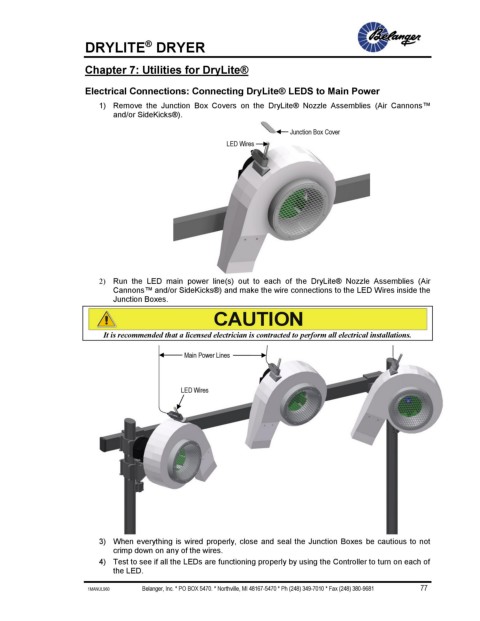

DRYLITE DRYER
Chapter 7: Utilities for DryLite®
Electrical Connections: Connecting DryLite® LEDS to Main Power
1) Remove the Junction Box Covers on the DryLite® Nozzle Assemblies (Air Cannons™
and/or SideKicks®).
Junction Box Cover
LED Wires
2) Run the LED main power line(s) out to each of the DryLite® Nozzle Assemblies (Air
Cannons™ and/or SideKicks®) and make the wire connections to the LED Wires inside the
Junction Boxes.
CAUTION
It is recommended that a licensed electrician is contracted to perform all electrical installations.
Main Power Lines
LED Wires
3) When everything is wired properly, close and seal the Junction Boxes be cautious to not
crimp down on any of the wires.
4) Test to see if all the LEDs are functioning properly by using the Controller to turn on each of
the LED.
