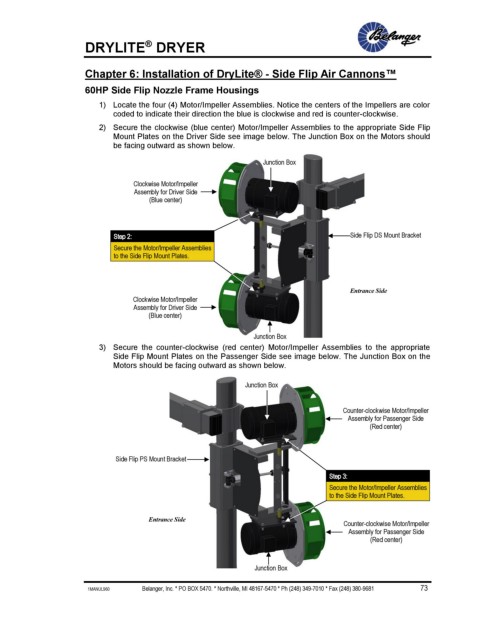

DRYLITE DRYER

Chapter 6: Installation of DryLite® - Side Flip Air Cannons™

60HP Side Flip Nozzle Frame Housings
1) Locate the four (4) Motor/Impeller Assemblies. Notice the centers of the Impellers are color
coded to indicate their direction the blue is clockwise and red is counter-clockwise.
2) Secure the clockwise (blue center) Motor/Impeller Assemblies to the appropriate Side Flip
Mount Plates on the Driver Side see image below. The Junction Box on the Motors should
be facing outward as shown below.
Junction Box

Clockwise Motor/Impeller
Assembly for Driver Side
(Blue center)

Step 2: Side Flip DS Mount Bracket
Secure the Motor/Impeller Assemblies
to the Side Flip Mount Plates.

Entrance Side
Clockwise Motor/Impeller
Assembly for Driver Side
(Blue center)

Junction Box
3) Secure the counter-clockwise (red center) Motor/Impeller Assemblies to the appropriate
Side Flip Mount Plates on the Passenger Side see image below. The Junction Box on the
Motors should be facing outward as shown below.

Junction Box

Counter-clockwise Motor/Impeller
Assembly for Passenger Side
(Red center)

Side Flip PS Mount Bracket

Step 3:
Secure the Motor/Impeller Assemblies
to the Side Flip Mount Plates.

Entrance Side
Counter-clockwise Motor/Impeller
Assembly for Passenger Side
(Red center)

Junction Box
