DRYLITE DRYER
Chapter 8: Maintenance

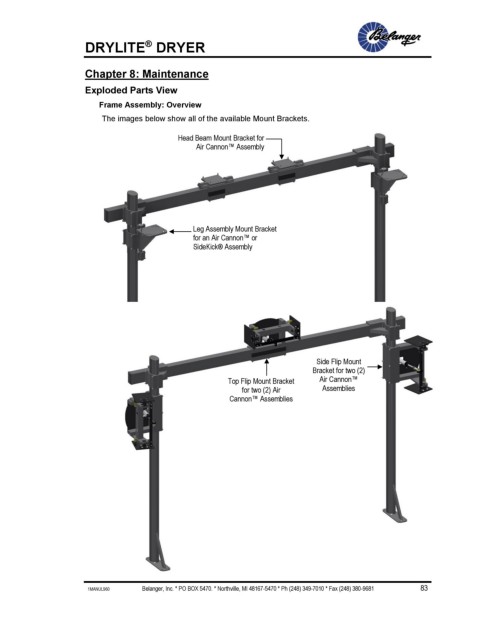

Exploded Parts View
Frame Assembly: Overview
The images below show all of the available Mount Brackets.
Head Beam Mount Bracket for
Air Cannon™ Assembly
Leg Assembly Mount Bracket
for an Air Cannon™ or
SideKick® Assembly
Side Flip Mount
Bracket for two (2)
Top Flip Mount Bracket Air Cannon™
for two (2) Air Assemblies
Cannon™ Assemblies
.
