DRYLITE DRYER

Chapter 8: Maintenance

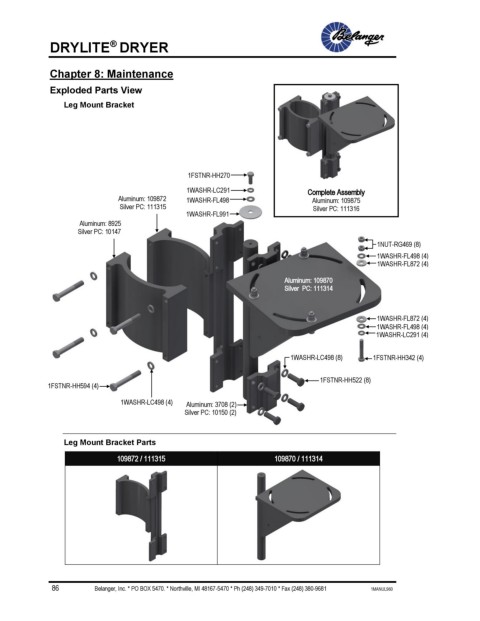

Exploded Parts View
Leg Mount Bracket

1FSTNR-HH270

1WASHR-LC291 Complete Assembly
Aluminum: 109872 1WASHR-FL498 Aluminum: 109875
Silver PC: 111315 Silver PC: 111316
1WASHR-FL991
Aluminum: 8925
Silver PC: 10147
1NUT-RG469 (8)
1WASHR-FL498 (4)
1WASHR-FL872 (4)

Aluminum: 109870
Silver PC: 111314

1WASHR-FL872 (4)
1WASHR-FL498 (4)
1WASHR-LC291 (4)

1WASHR-LC498 (8) 1FSTNR-HH342 (4)

1FSTNR-HH522 (8)
1FSTNR-HH594 (4)

1WASHR-LC498 (4) Aluminum: 3708 (2)
Silver PC: 10150 (2)

Leg Mount Bracket Parts
109872 / 111315 109870 / 111314
