DRYLITE DRYER
Chapter 8: Maintenance

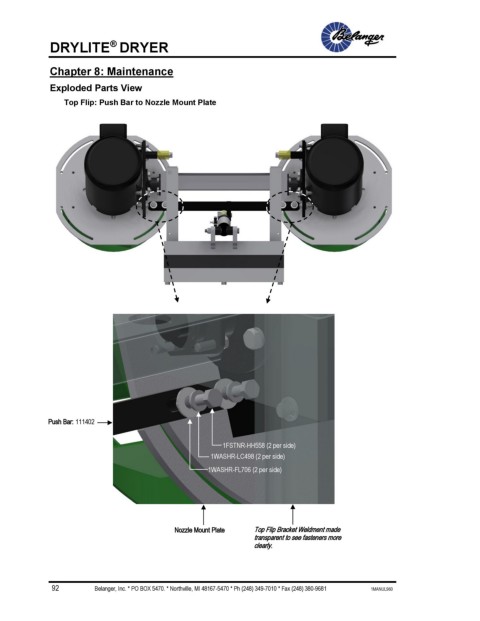

Exploded Parts View
Top Flip: Push Bar to Nozzle Mount Plate
Push Bar: 111402
1FSTNR-HH558 (2 per side)
1WASHR-LC498 (2 per side)
1WASHR-FL706 (2 per side)
Nozzle Mount Plate Top Flip Bracket Weldment made
transparent to see fasteners more
clearly.
